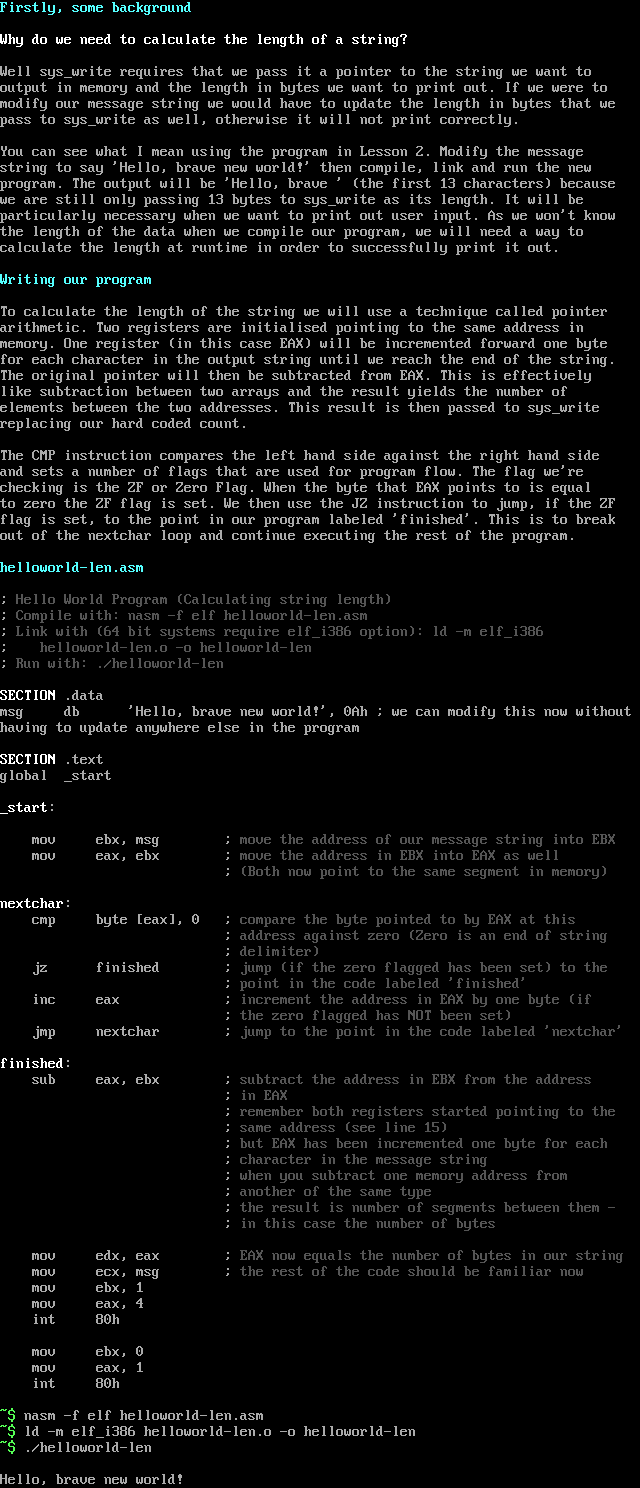

Firstly, some background
Why do we need to calculate the length of a string?
Well syswrite requires that we pass it a pointer to the string we want to
output in memory and the length in bytes we want to print out. If we were to
modify our message string we would have to update the length in bytes that we
pass to syswrite as well, otherwise it will not print correctly.
You can see what I mean using the program in Lesson 2. Modify the message
string to say Hello, brave new world! then compile, link and run the new
program. The output will be Hello, brave the first 13 characters because
we are still only passing 13 bytes to syswrite as its length. It will be
particularly necessary when we want to print out user input. As we wont know
the length of the data when we compile our program, we will need a way to
calculate the length at runtime in order to successfully print it out.
Writing our program
To calculate the length of the string we will use a technique called pointer
arithmetic. Two registers are initialised pointing to the same address in
memory. One register in this case EAX will be incremented forward one byte
for each character in the output string until we reach the end of the string.
The original pointer will then be subtracted from EAX. This is effectively
like subtraction between two arrays and the result yields the number of
elements between the two addresses. This result is then passed to syswrite
replacing our hard coded count.
The CMP instruction compares the left hand side against the right hand side
and sets a number of flags that are used for program flow. The flag were
checking is the ZF or Zero Flag. When the byte that EAX points to is equal
to zero the ZF flag is set. We then use the JZ instruction to jump, if the ZF
flag is set, to the point in our program labeled finished. This is to break
out of the nextchar loop and continue executing the rest of the program.
helloworld-len.asm
Hello World Program Calculating string length
Compile with: nasm -f elf helloworld-len.asm
Link with 64 bit systems require elfi386 option: ld -m elfi386
helloworld-len.o -o helloworld-len
Run with: ./helloworld-len
SECTION .data
msg db Hello, brave new world!, 0Ah we can modify this now without
having to update anywhere else in the program
SECTION .text
global start
start:
mov ebx, msg move the address of our message string into EBX
mov eax, ebx move the address in EBX into EAX as well
Both now point to the same segment in memory
nextchar:
cmp byte eax, 0 compare the byte pointed to by EAX at this
address against zero Zero is an end of string
delimiter
jz finished jump if the zero flagged has been set to the
point in the code labeled finished
inc eax increment the address in EAX by one byte if
the zero flagged has NOT been set
jmp nextchar jump to the point in the code labeled nextchar
finished:
sub eax, ebx subtract the address in EBX from the address
in EAX
remember both registers started pointing to the
same address see line 15
but EAX has been incremented one byte for each
character in the message string
when you subtract one memory address from
another of the same type
the result is number of segments between them -
in this case the number of bytes
mov edx, eax EAX now equals the number of bytes in our string
mov ecx, msg the rest of the code should be familiar now
mov ebx, 1
mov eax, 4
int 80h
mov ebx, 0
mov eax, 1
int 80h
nasm -f elf helloworld-len.asm
ld -m elfi386 helloworld-len.o -o helloworld-len
./helloworld-len
Hello, brave new world!
